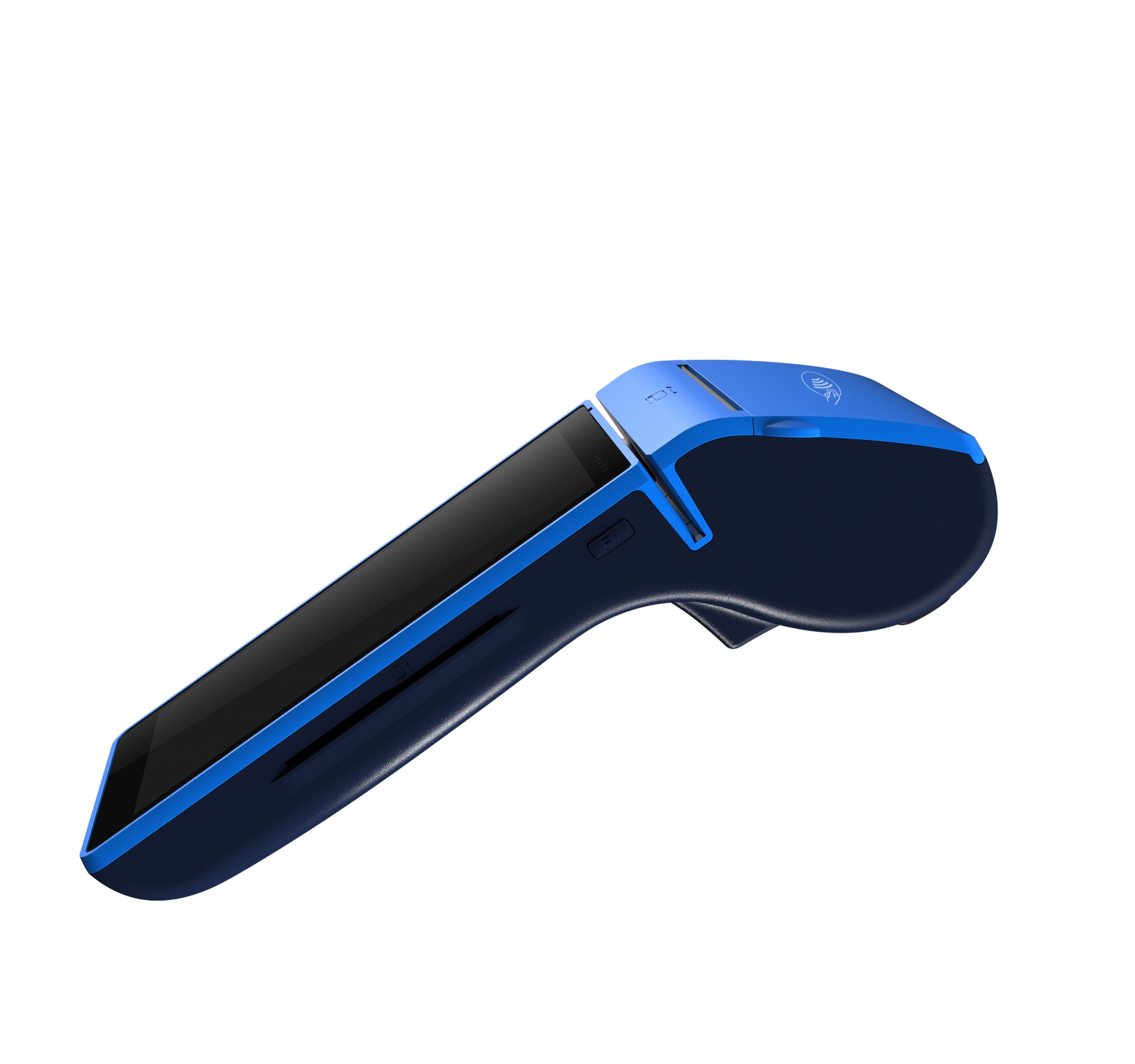

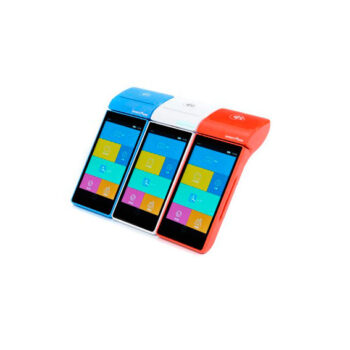

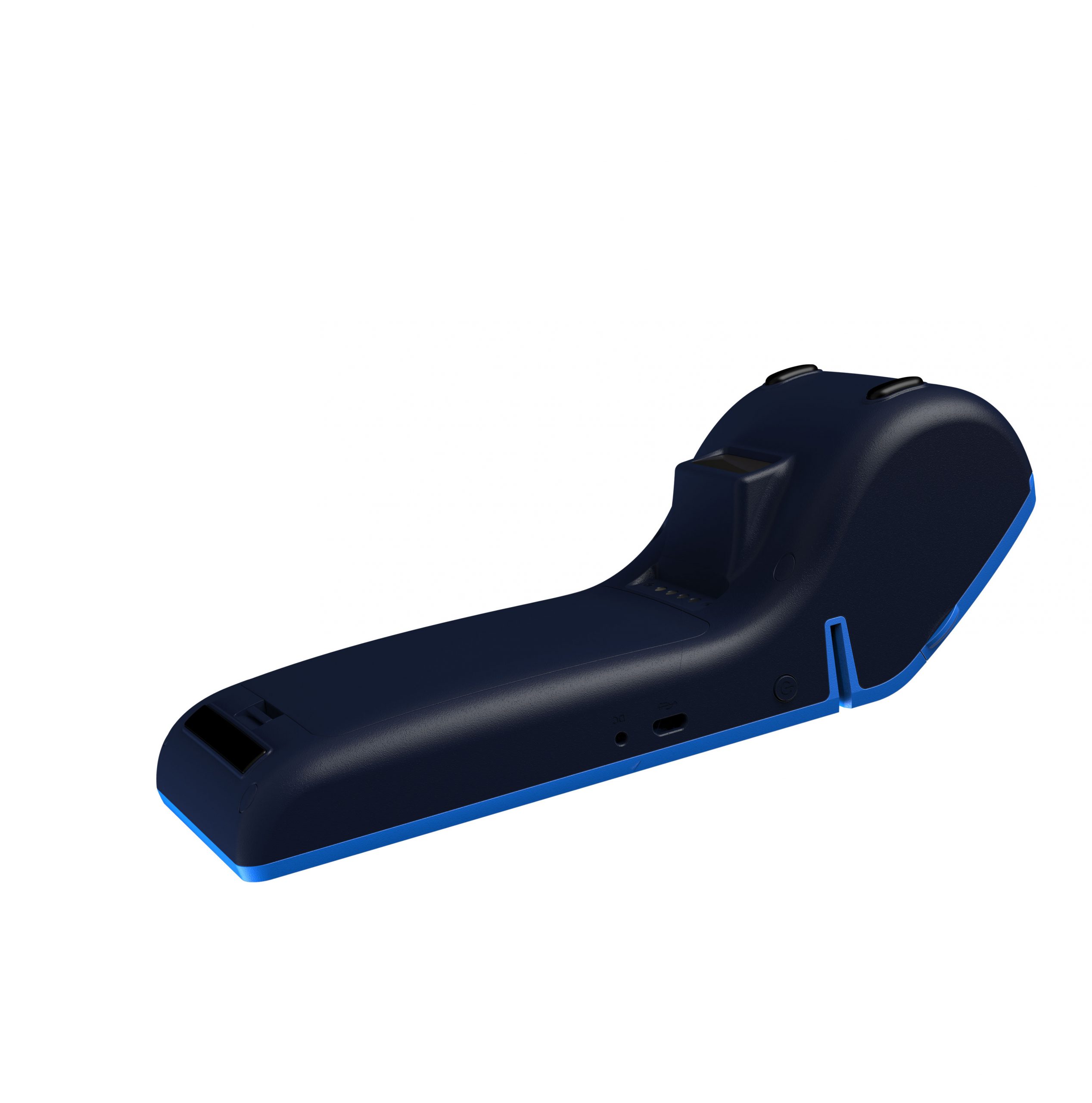

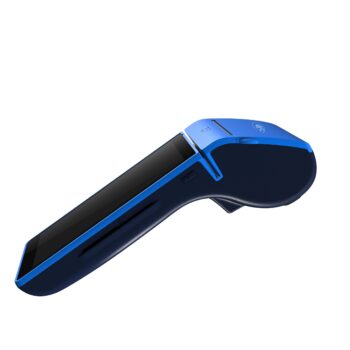

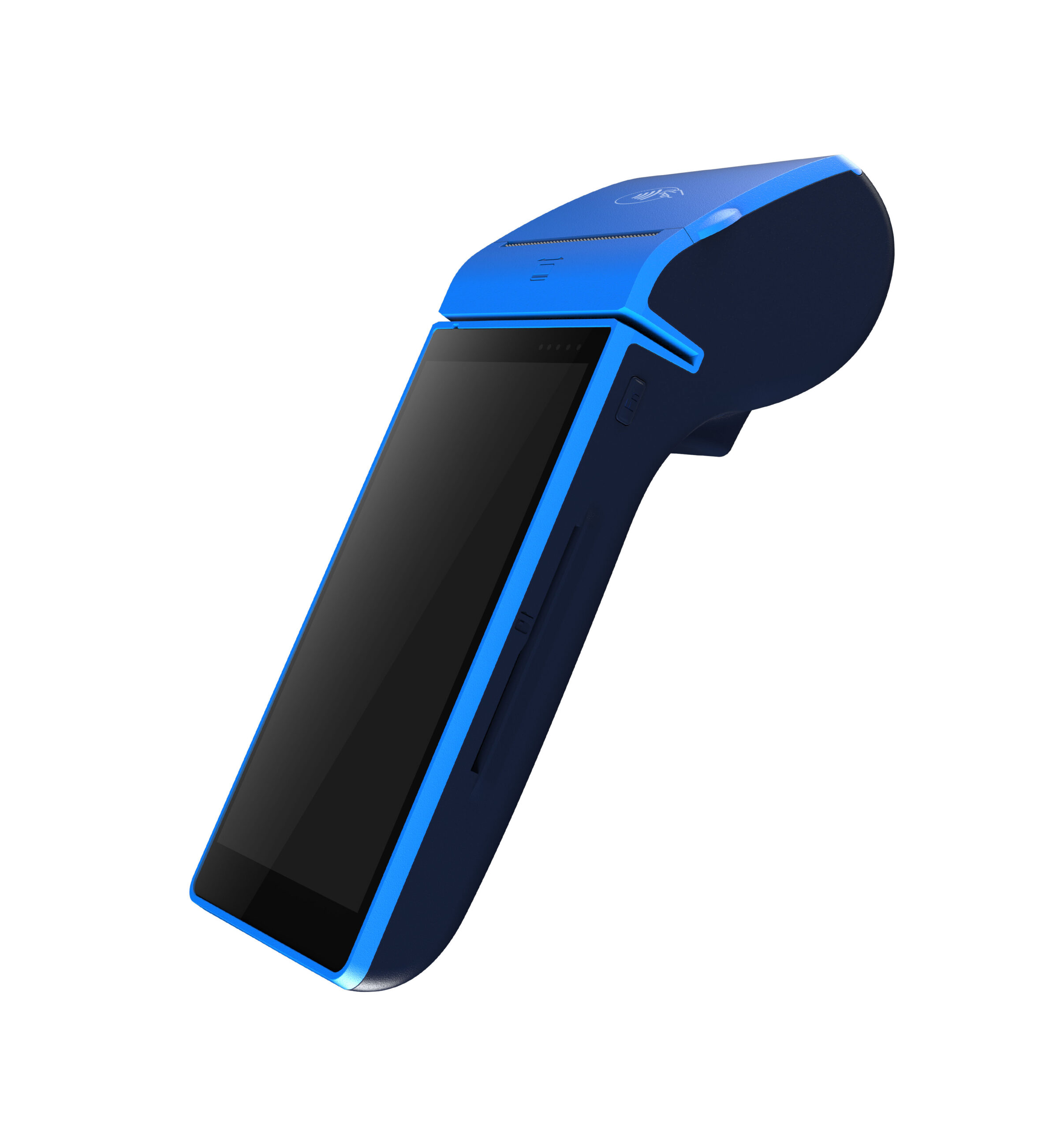

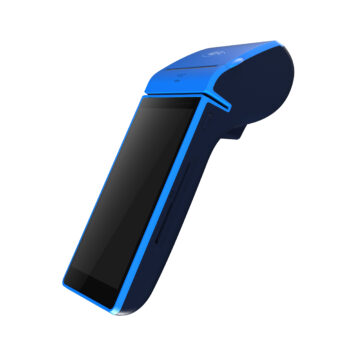

P2000
In Stock
Performance Index
Physical Parameters
Dimensions: 200mm（H）×80mm（W）×56mm/25mm（D）
Weight: 418g（battery included)
Opreating Temp.: -20°C~60°C
Storage Temp.: -40°C~80°C
Humidity: 10%~90% RH non-condensaing
Drop Test: 0.8-meter drop protection
Roller Drop Test: 1 meter diameter range can be rolled 500 times
ESD protection: ±8KV contact discharge; ±15KV air discharge
System Parameters
CPU: Qualcomm MSM8X12 quad-core 1.2GHz
OS: Android4.4
RAM/ROM: 8GB eMMC/1GB DDR2, supports external 32 GB at most
Display: 5.5 inches IPS display, capacitive touch
Keypad: one power physical button, three Touch System Keys (Menu, Back, Home)
Battery: Lithium polymer battery, 7.4V, 2000mAh
Functional Configuration
Printer: Built-in 2 inches thermal printer
Camera: 2M Rear Camera
Indicator Light: POS indicator light
Audios: Built-in speaker, buzzer, microphone.
Magnetic Strip Card: Support 1/2/3 magnetic track, bi-directional swiping, accord with ISO7811, 7812 standard
IC Card: one user slot, support 1.8V/3V/5V card, accord with ISO7816, PBOC and EMV standard
Contactless card: 13.56MHz, ISO/IEC 14443 Type A/B, accord with QPBOC standard
SAM Card: one PSAM slot, accord with ISO7816 standard
Password/keyboard: Built-in password keyboard
Network Parameters
Network Type: WCDMA/GSM
Network Spectrum: GSM 850/900/1800/1900; WCDMA 2100; WiFi 802.11b/g/n Built-in Antenna; standard of security WEP, WPA,
WPA-PSK, WPA-v2.0; Bluetooth V4.0 + EDR
WLAN: 802.11b/g/n Built-in Antenna; standard of security WEP, WPA, WPA-PSK, WPA-v2.0
Voice/Data service: Support
WPAN: Bluetooth V4.0 + EDR
External Interface
USB Interface: Micro USB2.0
Charger Jack: DC JACK
Power Supply Jack: Pogo Pin, 9.5V–1A
Communication: USB
Development Environment
System Environment: Android4.4/SP-UI
Development Environment: SP-SDK
Management Software: SP-PC Management Suite/MDM
