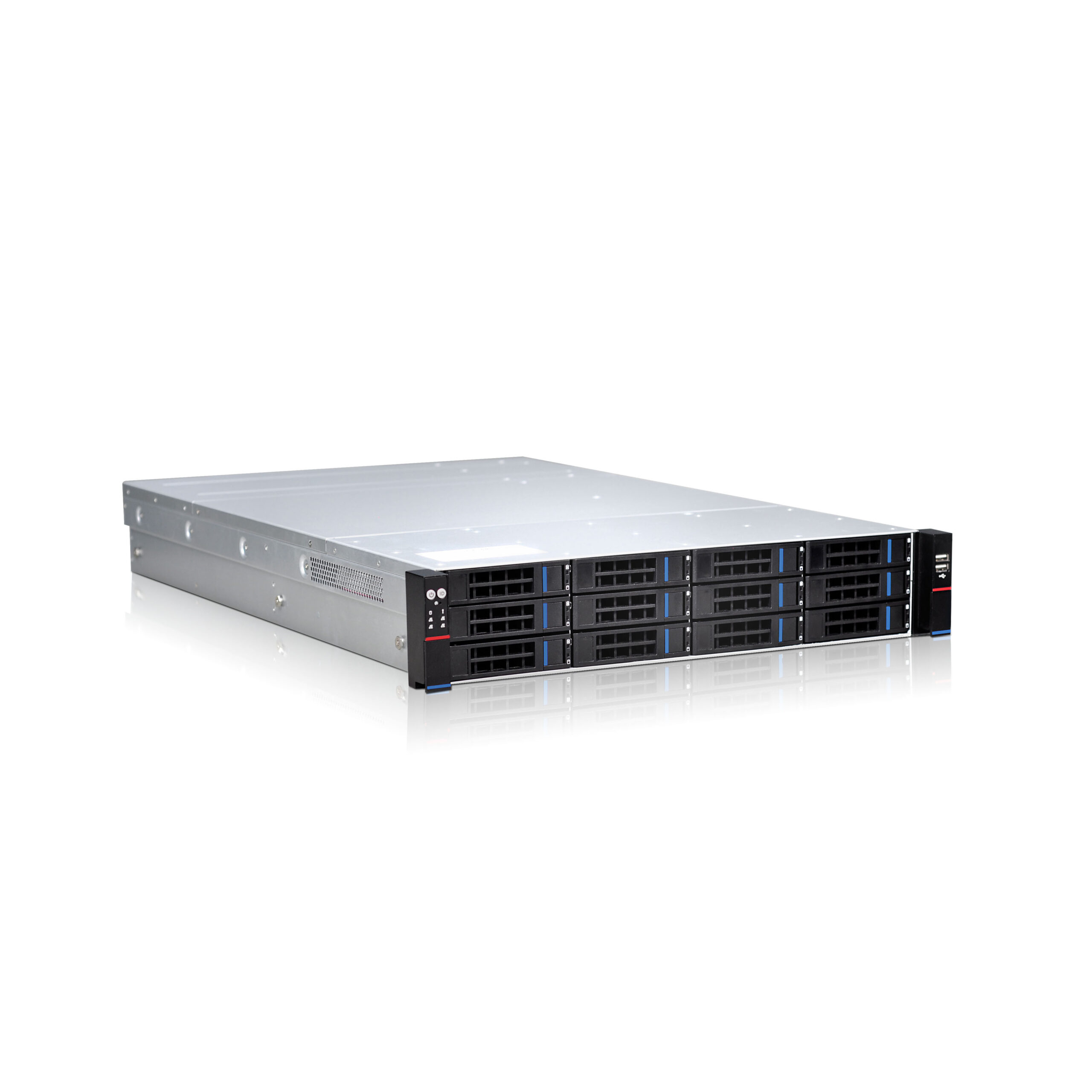

SY201-D12REH
In Stock
Technical Parameters
System
Model: SY201-D12REH
HDD: 12* 3.5″ | 2.5″ SAS | SATA
Weight: NW: 11Kg, GW: 14Kg
Memory: Up to 1TB DDR4 2400 / 2133 / 1866 RDIMM / LRDIMM
System Node: One Hot-pluggable controller module
CPU: Dual Processor
Power: 550W
Dimension: 675mm*448mm*88mm (D*W*H)
Motherboard
MB Model: G1DCW
CPU: Intel® Xeon® E5-2600 V3/V4 series processor (Max 145W)
MB Chip: Intel® Wellsburg C612 PCH
DIMM: 16xDDR4 RDIMM slot
Memory: Each DIMM support 32 GB (RDIMM) / 64GB (LRDIMM) Maximum 1024GB for whole motherboard DDR4 2400/2133/1866 RDIMM/LRDIMM
PCH RAID: Intel® RSTe Support software RAID 0, 1,5 & 10
IPMI: Support Intelligent Plataform Management Interface (IPMI 2.0) IPMI 2.0 with virtual media over LAN and KVM over LAN support ASPEED AST2400 BMC
Network: 4* 1Gbe LAN or 2* 10Gb SFP +
USB: 1* USB3.0 type A onboard, 2* front USB2.0, 2* rear USB3.0
M.2: 550/770W
System Power
Description: 1 + 1 platinum efficiency RPSU
Power: 550/770W
System Fans
QTY: 4* 8038 PWM fans
Speed: Up to 6800 +/- 10% RPM
System Compatibility Matrix
O/S: Microsoft Windows Server 2008 R2 (x64), Microsoft Windows 2012 (x64), Microsoft Windows 2012 R2 (x64), Microsoft Windows Server 2016 (x64), Red Hat Enterprise Linux* (x64), SUSE Linux Enterprise Server* (x64), Ubuntu Linux Server* (x64)
VMM: VMware ESXi 5.1 U2 P05 (except Fultondale), ESXi 5.5, Microsoft Windows Server 2008 R2 SP1, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016 (x64), Xen 3.3/3.4/3.5, Linux KVM (RHEL 6), Microsoft Azure, (Parallels Server)
Temperature Range
Operating Temperature: Working temperature: 10°C – 35 °C
Storage temperature: -40 °C – 70 °C
Certification
Certification: CCC, CE, FCC, ROHS
